Creating a REST API with JSON payload in OIC to read CSV based files

This tutorial will emphasize creating REST API within OIC to read CSV files from the FTP server.

To proceed with the use case, we need to first create a connection using an FTP adapter, Below article guide you to create  FTP Connection

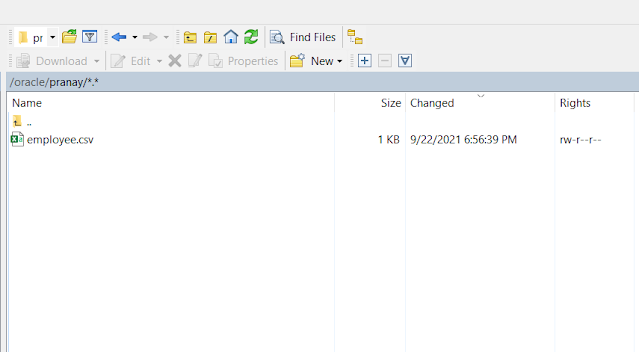

Here is the sample file which is located on FTP Server, now we will develop an integration to read this file and generate JSON payload through REST.

We have a sample file already located in the FTP server, now let's hop into the workspace to create an integration

Select App Driven Orechestration

Fill the Name, Identifier and provide the package information for the better practice

Drop the REST Trigger on the pallette

Fill the endpoint Name

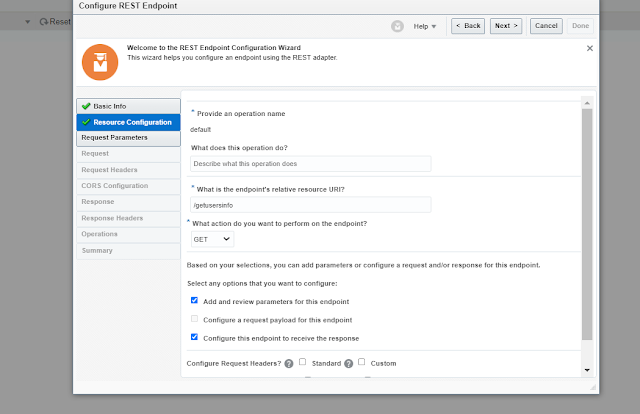

Provide the resource URI name and endpoint action as "GET"

provide a sample JSON file as shown in the screenshot

Here is the sample payload

[

{"id":"",

"firstname":"",

"lastname":"",

"designation":"",

"email":""

}

]

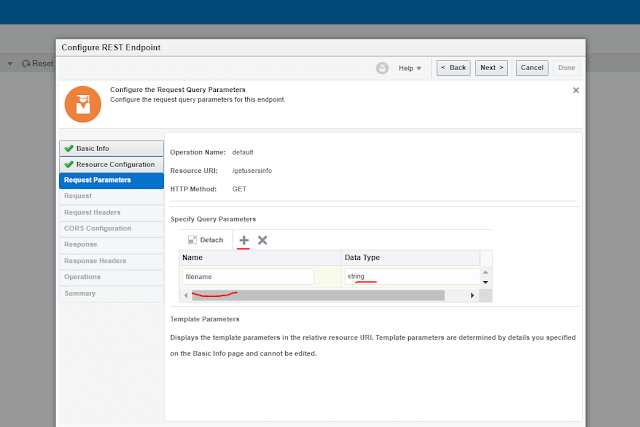

Click the Next and opt the queryparam and then click on Done button to complete the REST connector configuration

Next step is to drop FTP Connection onto the workspace

enter the endpoint name which you would like to pass

Select operation "Read a File"  and provide input directory for example /oracle/pranay

Note: Directory must exist on the server otherwise integration will fail and provide the file name as well

Click on Yes to provide structure to contents of the file

Choose sample CSV File

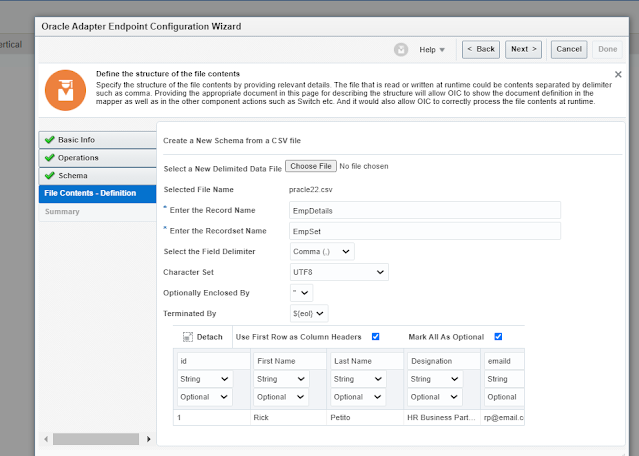

Define the columns

Click on Done

I have already checked in file and its ready to get picked by REST API upon its call

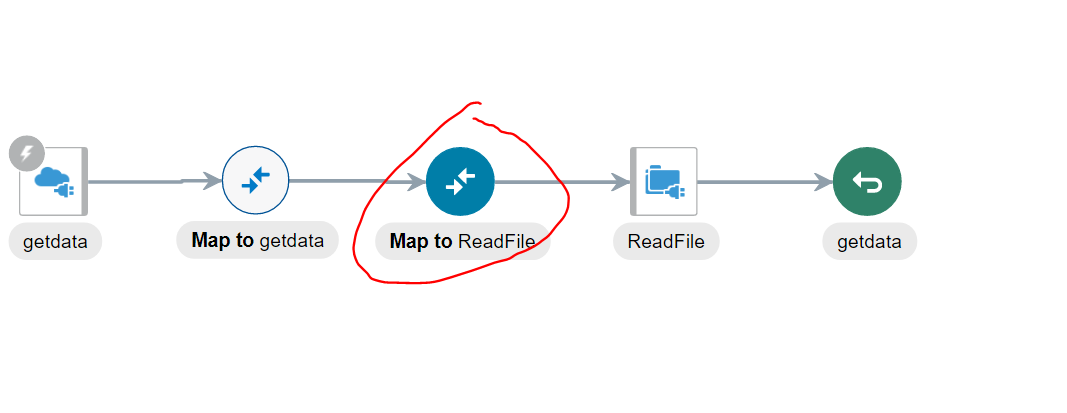

The next step is to create the mapping between REST connector and FTP connectors

Map the query param

Map the columns

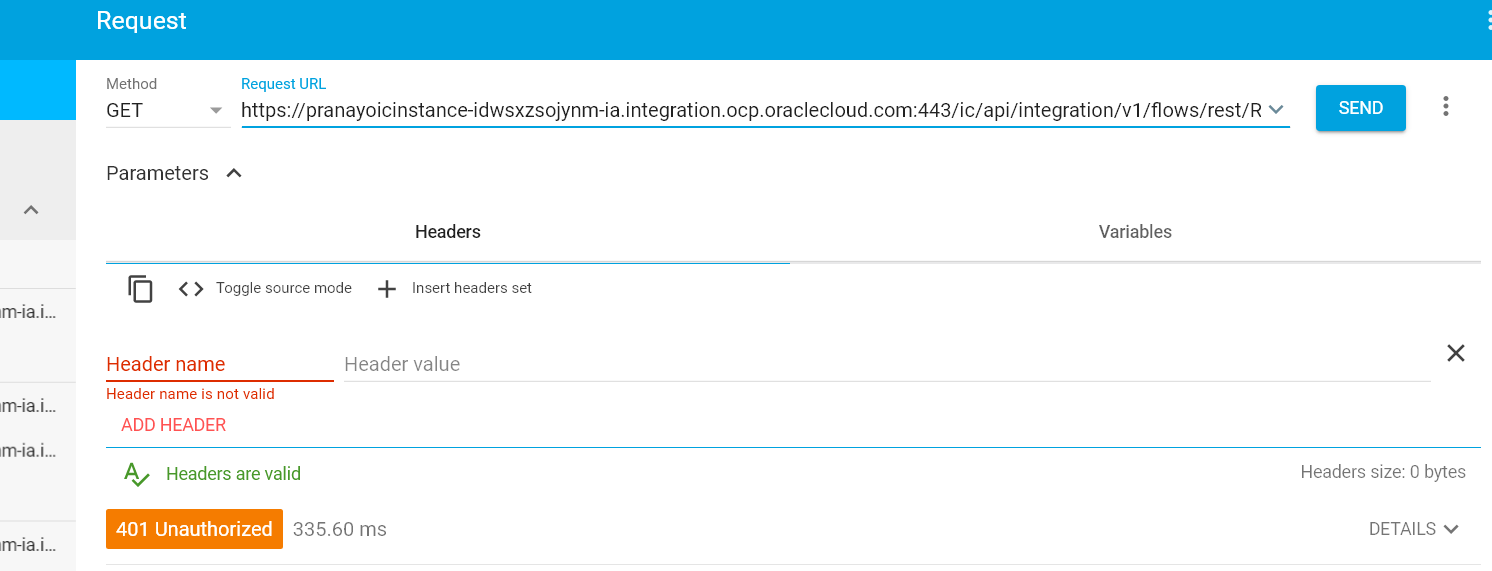

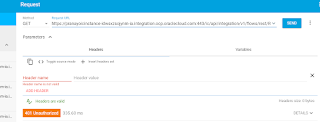

Enable the track identifier and  activate the integration in OIC console, copy the URL, and put  the credentials

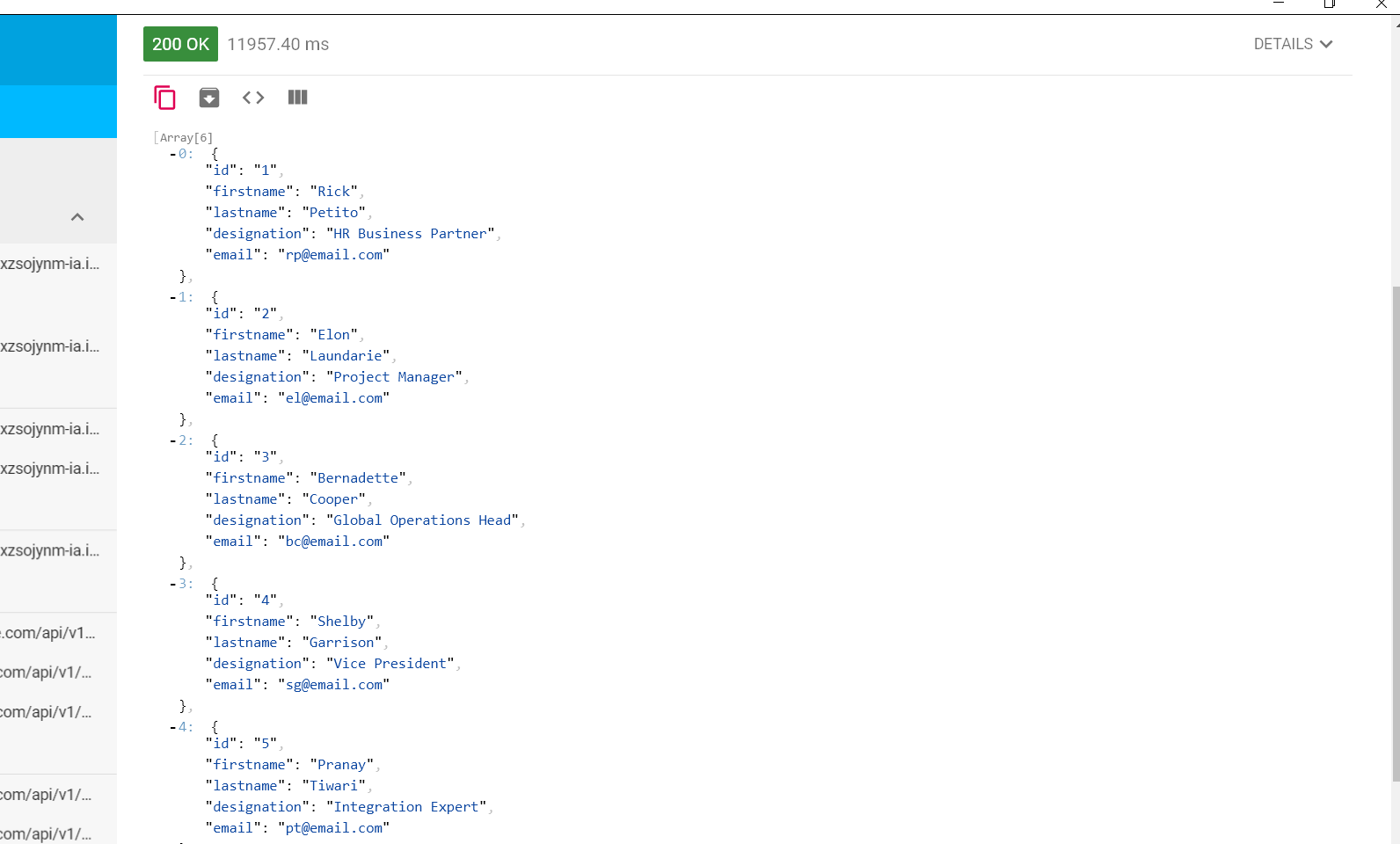

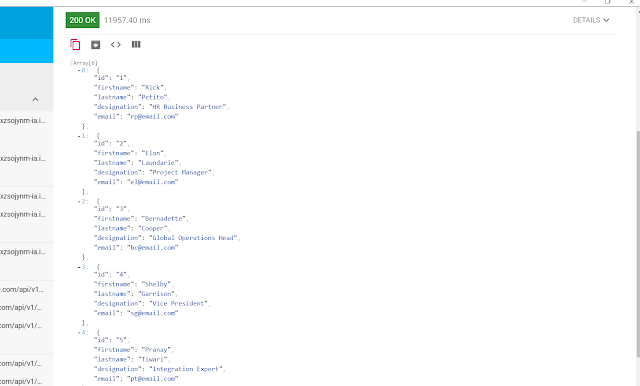

Here is the data of CSV file from FTP server in JSON format
