Read CSV File from FTP server and insert data into On Premise Database using OIC


Read CSV File from FTP server and insert data into On-Premise Database using OIC

 In this article, we will learn how to reuse or call already built integration into another integration.

Use case:  REST integration needs to be developed with the capability to read CSV data from an external FTP server and insert the CSV data into Oracle On-Prem Database






1. Create another  REST Integration in OIC to read a CSV file based on JSON Payload Let's name it Integration1 (ReadCsvandDatabaseInsert)

2.  Create REST Integration in OIC to insert data into the On-Premise Database instance, Let's name it Integration2 (OnPremDataInsert)

3. Now will call Integration2 (OnPremDataInsert with the name OnPremDataInsert in Integration1(ReadCsvandDatabaseInsertto read CSV data from an external FTP server and insert the CSV data into Oracle On-Prem Database


Now let's create Integration1 (ReadCsvandDatabaseInsert)  to read a CSV file based on JSON Payload


Create the integration, drop the REST connector, and fill in the mandatory details like REST endpoint name, Resource URI


Go to the Integrations and click on Create





Select App Driven Orchestration


Provide the integration Name



Drop the REST Trigger Connector

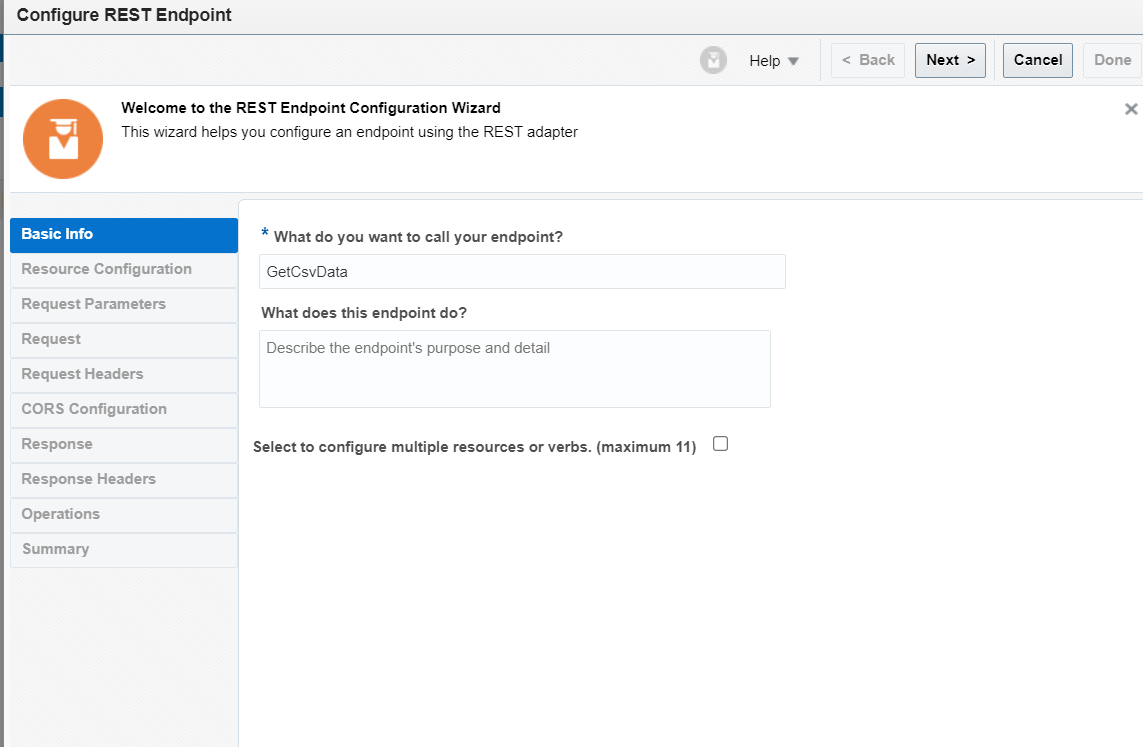

Fill the endpoint name


Select the Resource URI and Operation for the endpoint


Enable the query parameter as shown in the snippet




Copy the below sample JSON payload


{

  "UserData" : [ {

    "id" : "",

    "FirstName" : "",

    "LastName" : "",

    "Department" : ""

  }, {

    "id" : "",

    "FirstName" : "",

    "LastName" : "",

    "Department" : ""

  } ]

}



Click on Done




 Drop the FTP Connector as shown in the snippet

provide the endpoint name

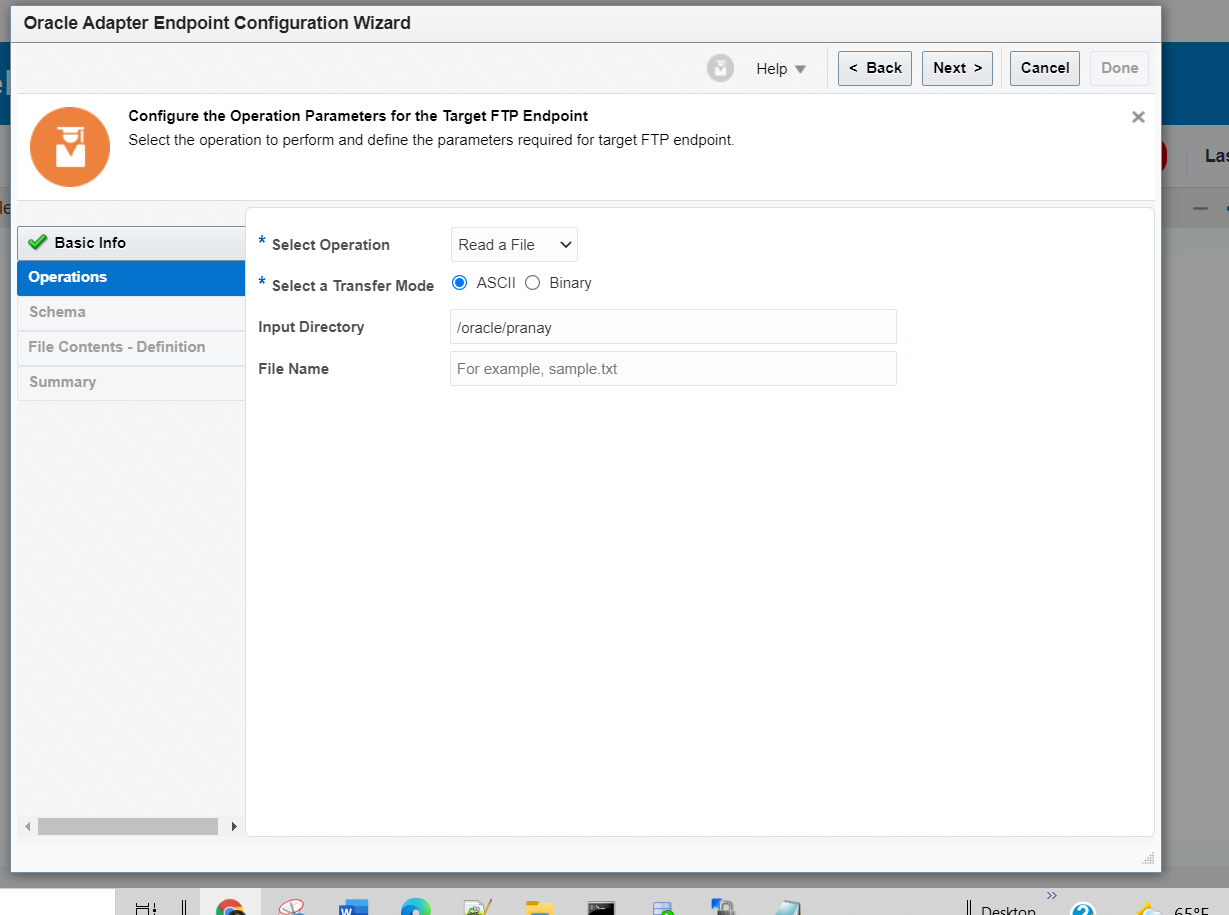

Provide operation as "Read a File"  and provide Input directory of the file residing in external FTP server






Provide the structure of the file as shown in the snippet


Create an empty CSV with the column names and click on Selected File Name





  • ID
  • FIRSTNAME
  • LASTNAME
  • DEPARTMENT


Initiate the mapper activity




Define the mapping for the query param at request side





Mapping activity at FTP connector






Map the column between source and target



Enable the identifier



Activate the integration and hit the URL

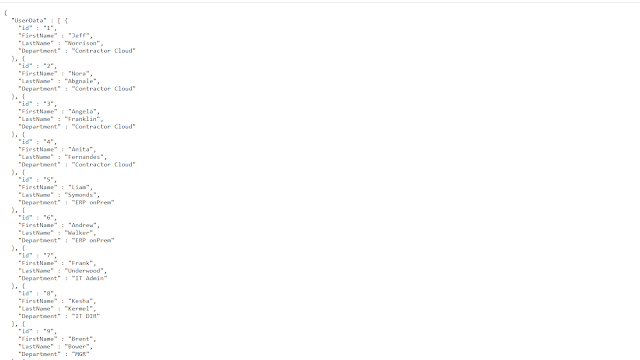

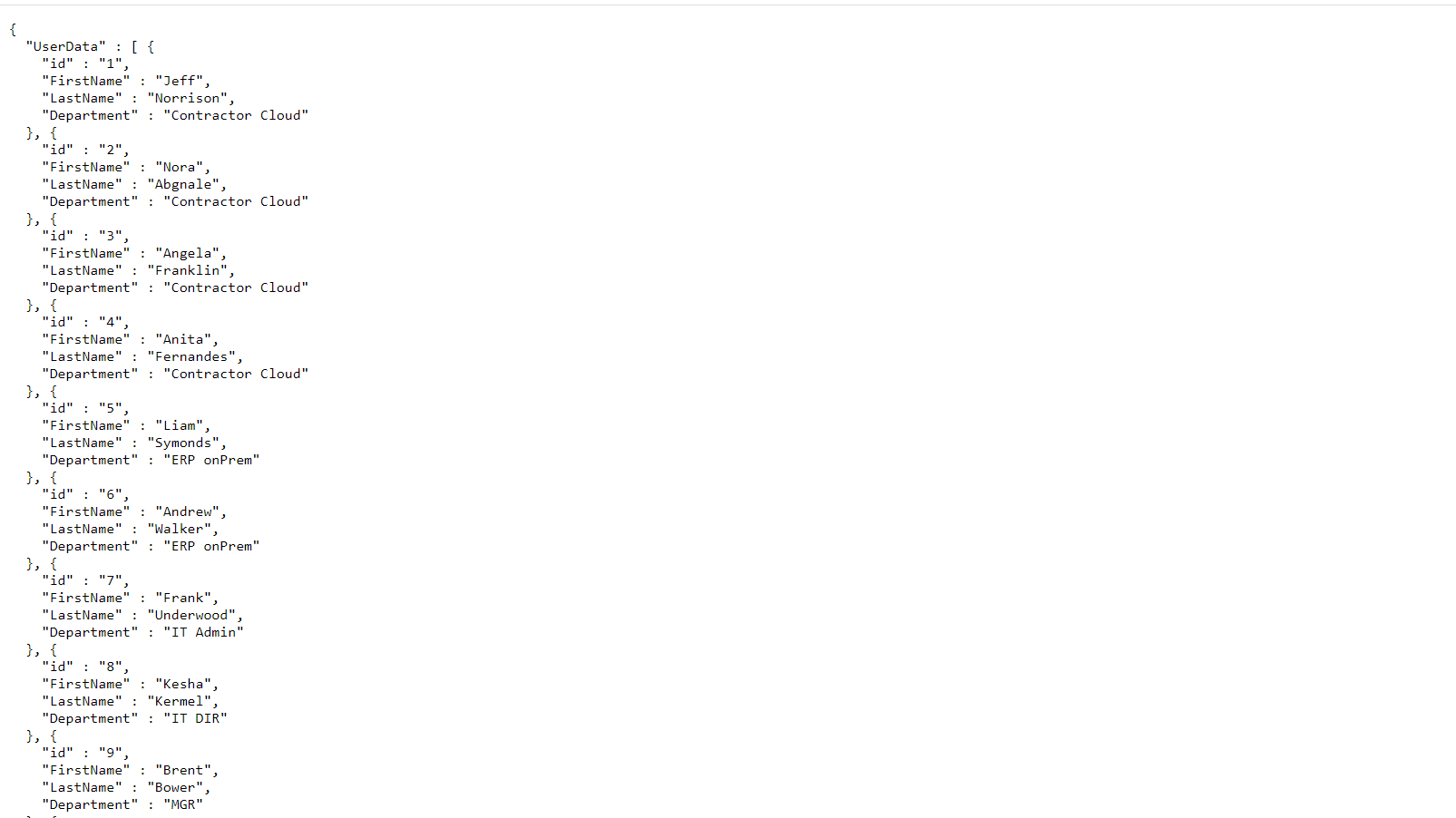

Here is the JSON payload which shows the data from the CSV file



Now create another Integration to insert data into On-Prem Database instance



Click on Create



Click on App Driven Orchestration



Fill in the mandatory details







Drop REST connector





Fill in the endpoint name

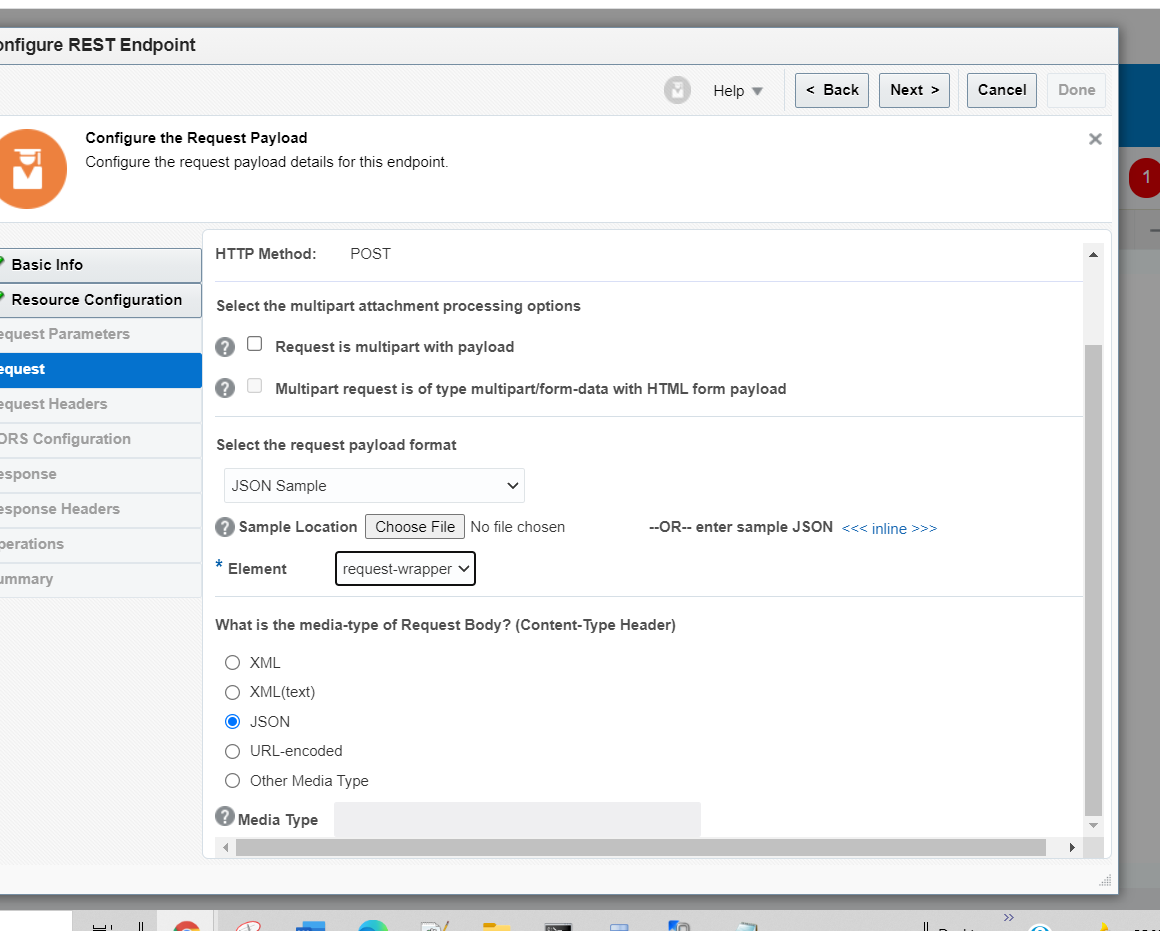

Select the operation as POST and provide sample JSON payload for both request and response




Click on Next


Provide the JSON Sample Payload


{

  "UserData" : [ {

    "id" : "",

    "FirstName" : "",

    "LastName" : "",

    "Designation" : ""

  }, {

    "id" : "",

    "FirstName" : "",

    "LastName" : "",

    "Designation" : ""

  } ]

}



Click on Next

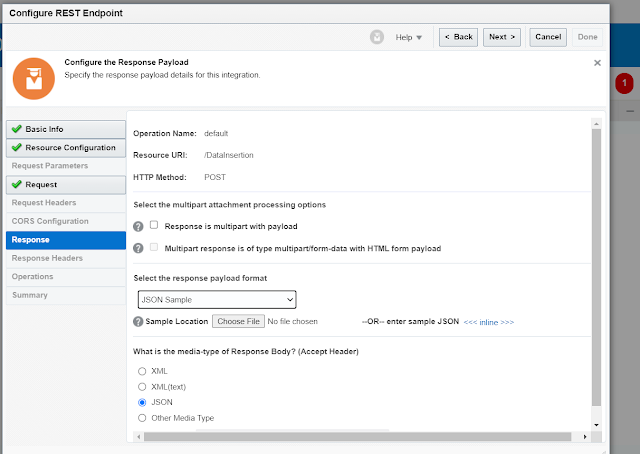

Click on Response and provide sample  JSON payload

{

"status" :""
}


Click on Next



Click on the Done button

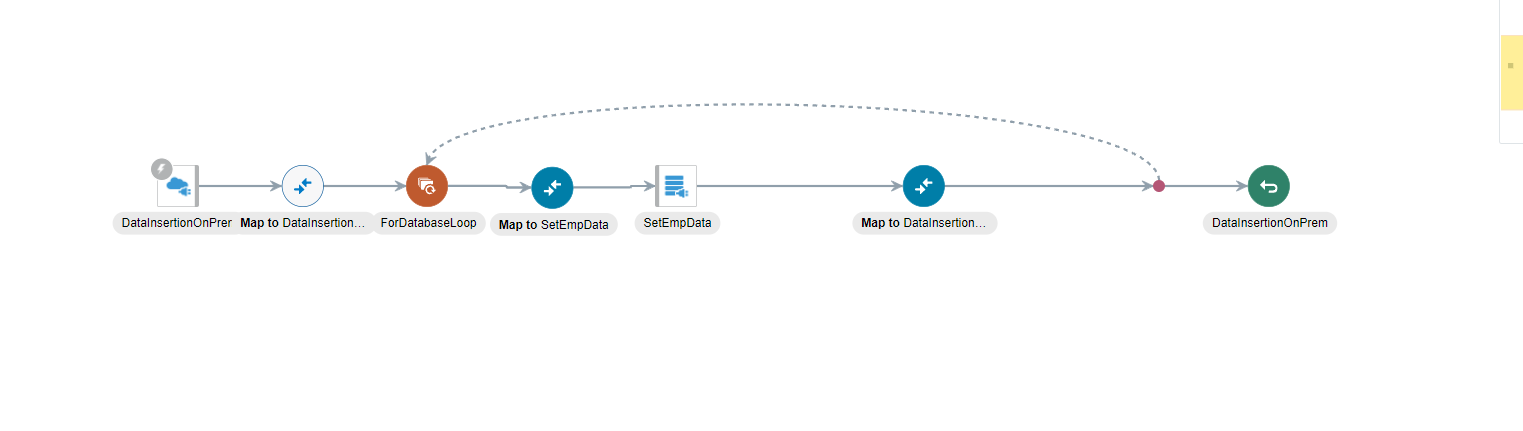

Now drop the For loop


Drop UserData Array element as Repeating Element








Once FOR LOOP is configured then drop On-Prem Database connector onto the pallette


Fill in the Endpoint name and provide operation as Run a SQL statement


provide the below insert statement and click on Next



INSERT INTO XX_EMP_JOB_DESCRIPTION( ID,FIRST_NAME,LAST_NAME,DESGINATION) VALUES (#ID,#FIRSTNAME,#LASTNAME,#DESGINATION)







Click on Validate SQL Query





Click on Done button

Now click on mapper to start the mapping activity

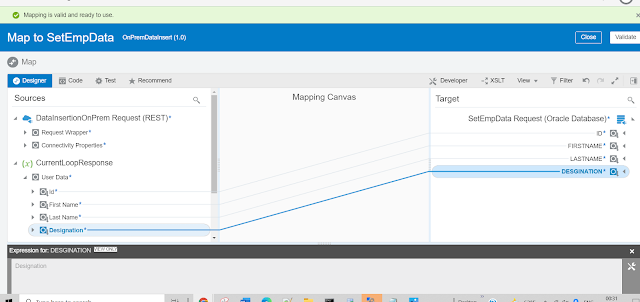

Map the column between source and target



Click on Validate



Create mapping for target response

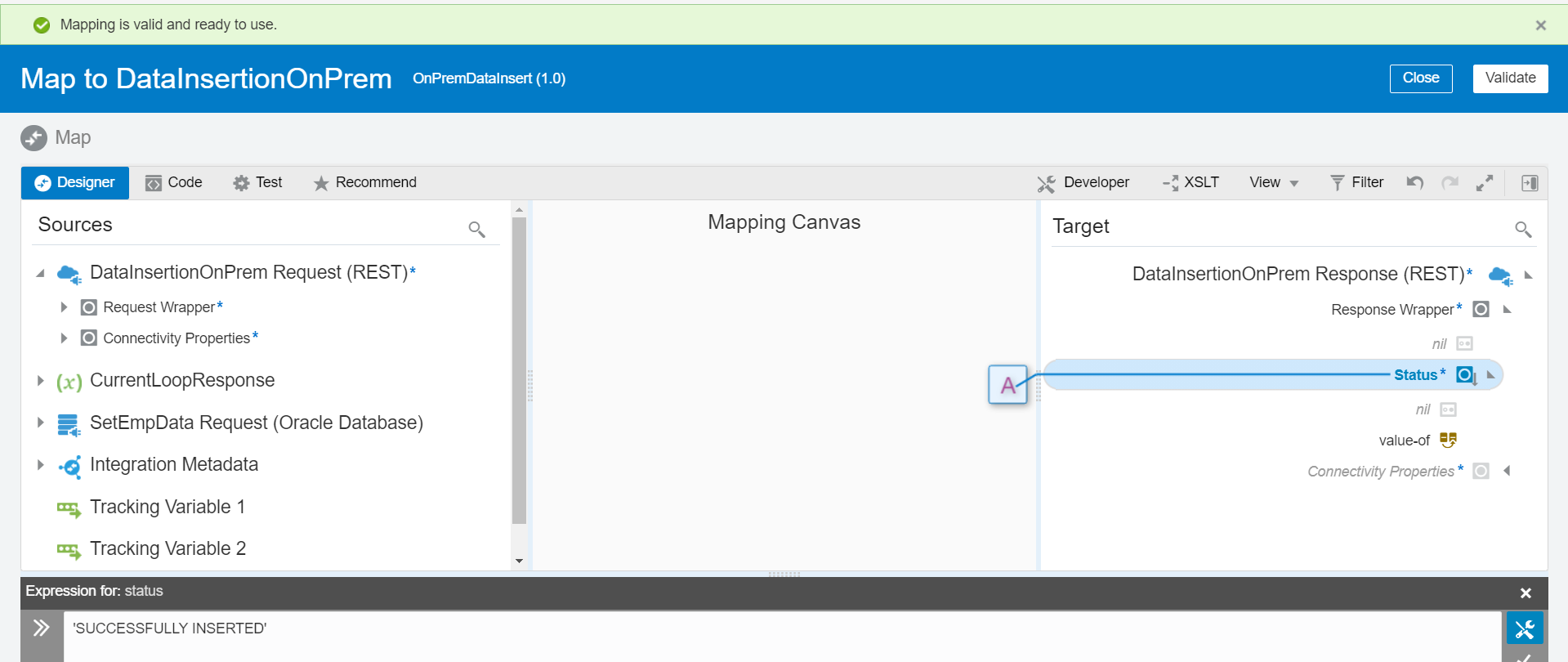

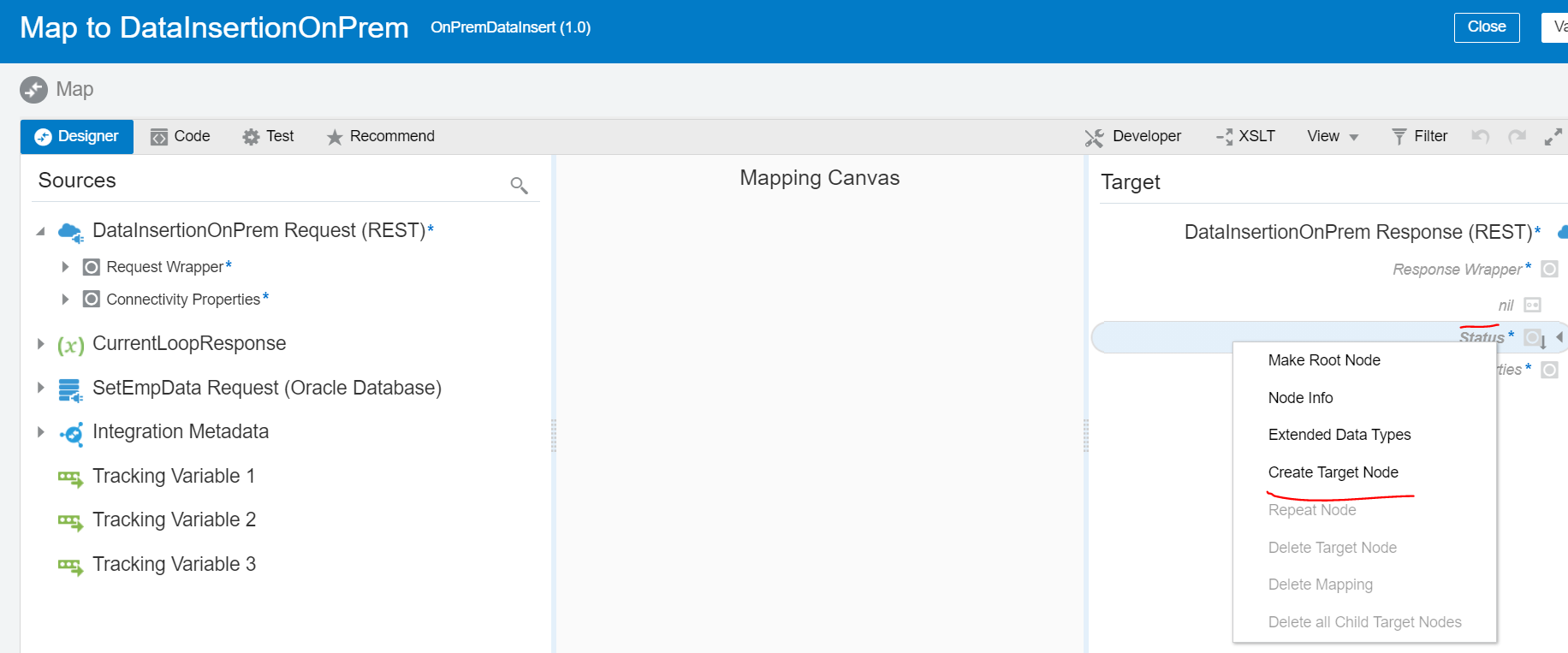

Click on Create target node and provide the response message as shown in the snippet

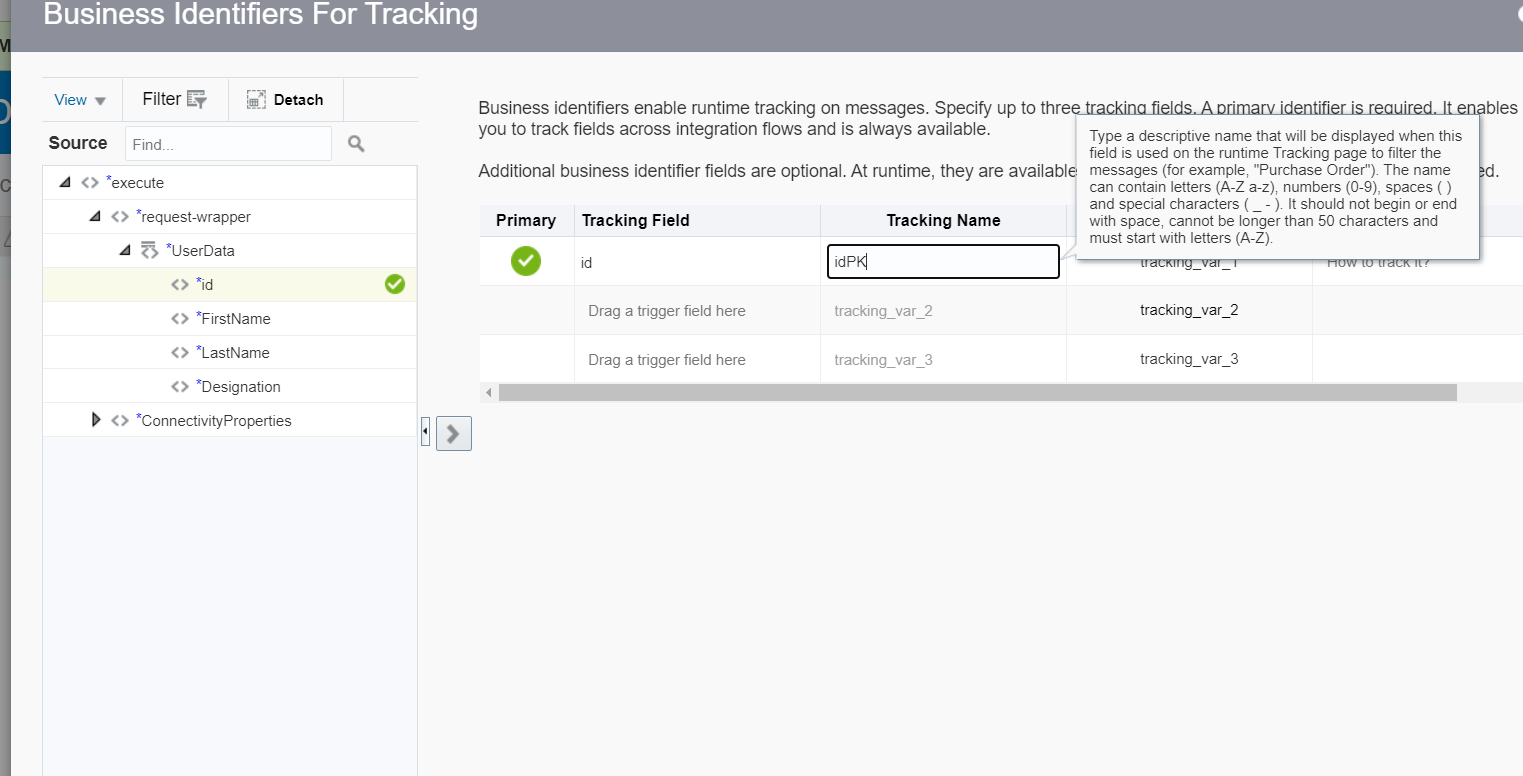

Enable the tracking identifier

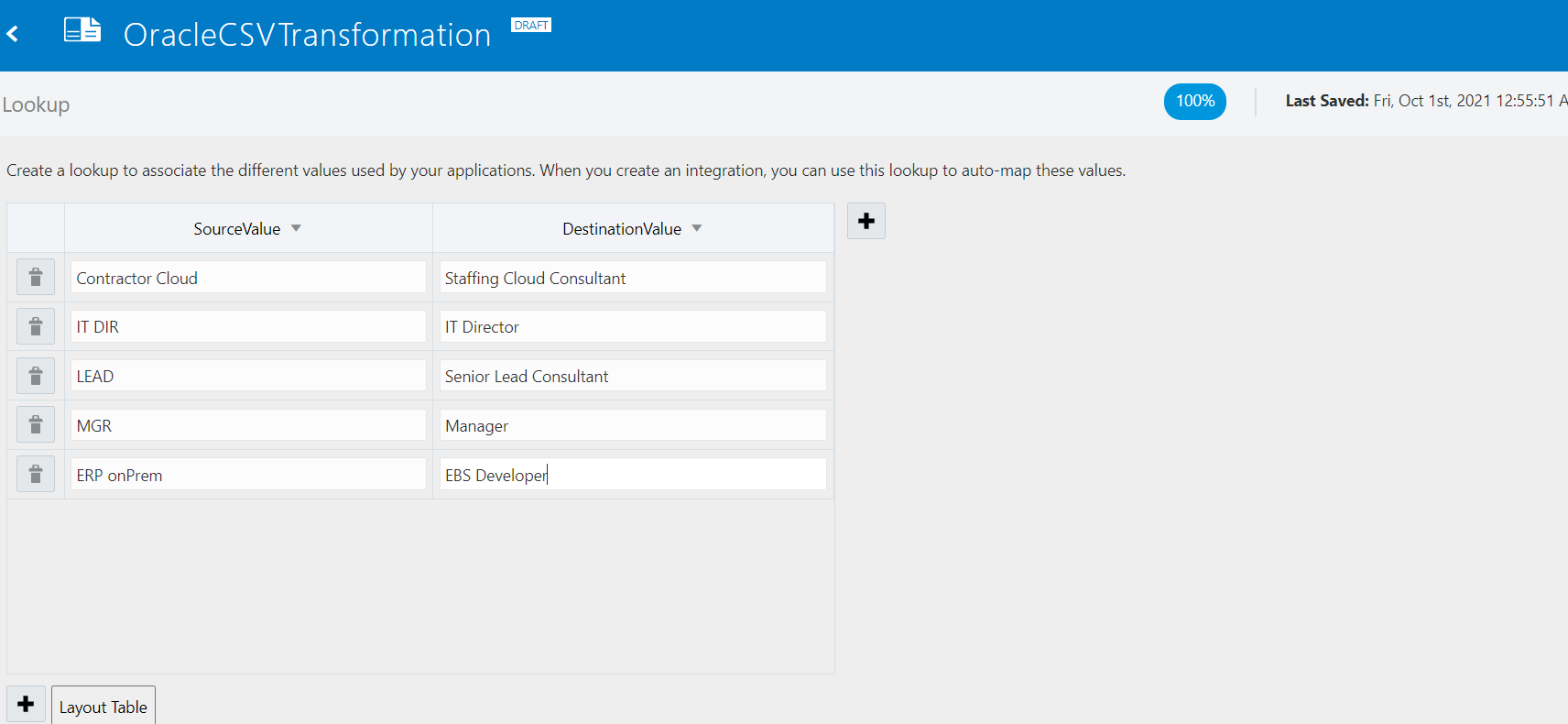

Let's create a lookup to transform data from source to target instance



Creating data mapping between source and destination



Now next step is to assign lookup in mapping stage


Click onDesgination Column and click on  Functions




Click on LookupValue and drop on onto the pallet

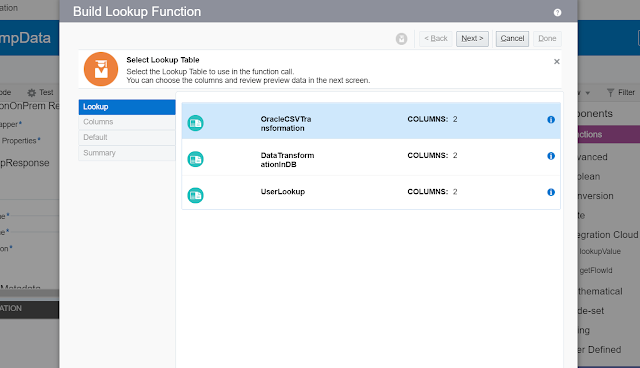

choose the lookup name

Click on Next

Click on Default Value as NA


Click on Done

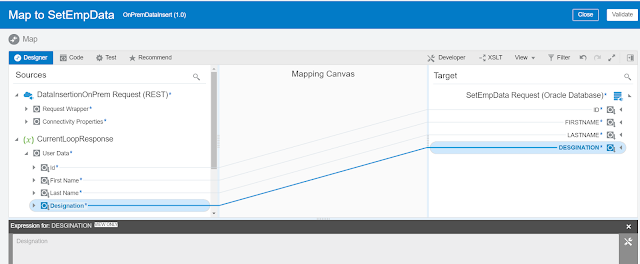

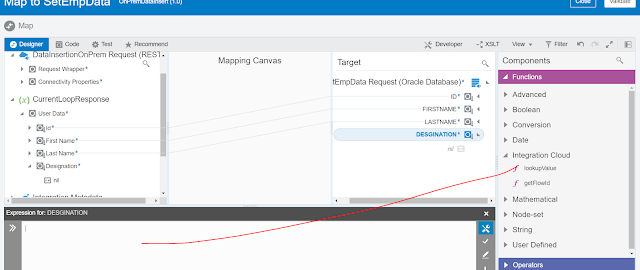

Edit the expression by dropping column from source to the lookup expression as shown in the snippet



click on save and close it


Activate the integration and call the REST URL from OIC to verify whether data getting inserted or not

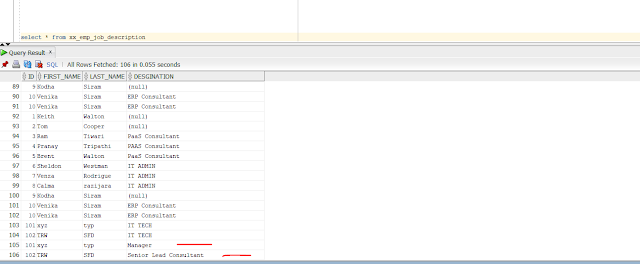

Data has been successfully validated and transformed  in the On-Prem Database instance




Now let's call the newly created integration OnPremDataInsert in the integration ReadCsvandDatabaseInsert

Deactivate the integration to make any changes to it .

Drop the action to call Integration



Provide the integration Call name

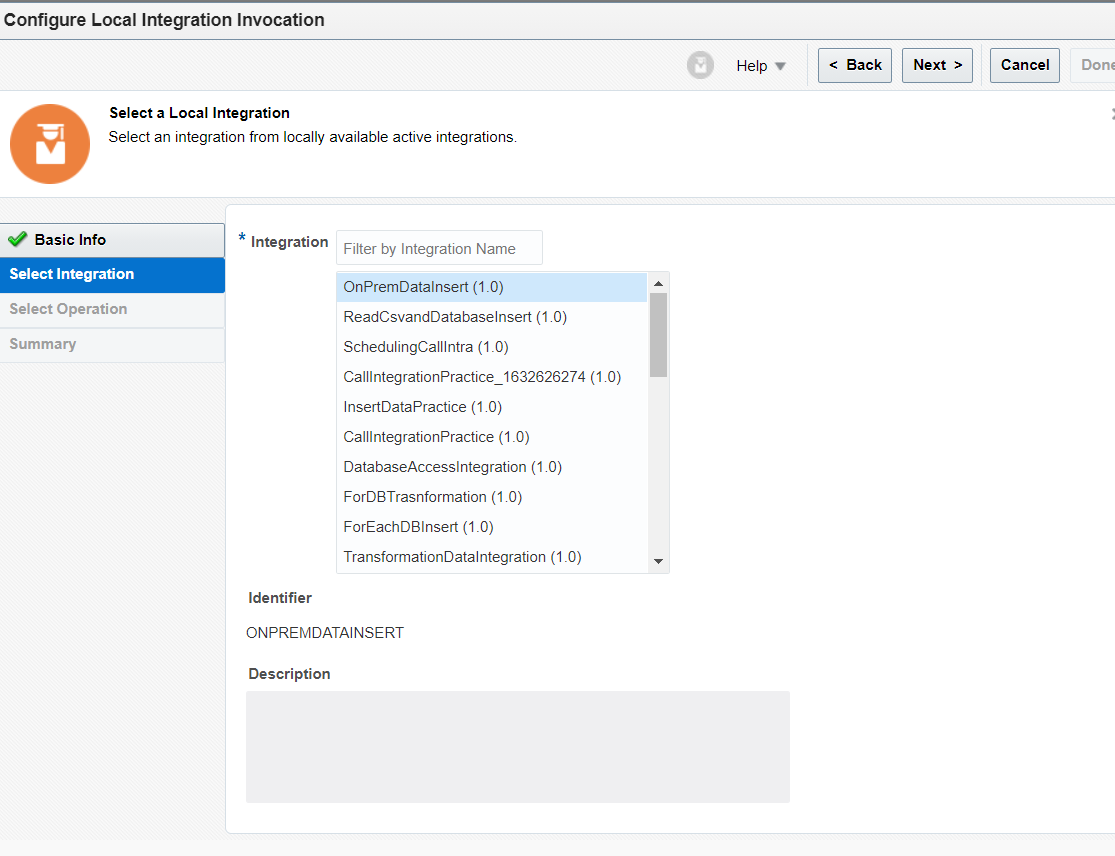

Select the integration name OnPremDataInsert



Clik on Operation POST



Click on Done




Click on Mapper Activity
Map the columns




Run the integration





Here is the data load from CSV file to On prem data base instance
