Optimizing Integration: Retrieving and Displaying Multiple Values using Java Methods in OSB 12C
In OSB, while using the JAVA Callout function, we often face a limitation where if a Java program returns a single value, we can assign it to a result set in OSB and display it in the payload. However, if the Java program returns multiple values, it becomes challenging to assign them to a result set in OSB. In such cases, we need to create an XML format for the payload within the Java program itself to handle the multiple return values.
To achieve the above objective, we first need to create a Java file and then generate a JAR file based on it.
Generate the JAR based on below JAVA program. Generate JAR File
package javamultixmlprj;
import org.apache.xmlbeans.XmlObject;
public class CustJavaMultiXML {
public CustJavaMultiXML() {
super();
}
static XmlObject newObject;
public static XmlObject CustomerAddress(int CustId) {
String Name="";
String City="";
String Designation="";
if (CustId==1000)
{
Name="Pranay Tiwari";
City="Columbus";
Designation="Application Developer" ;
}
else
{
Name="Ralph Dmitri";
City="Chicago";
Designation="Enterprise Architect" ;
}
String xmlString =
String.format("<Customer xmlns=\"http://www.xmlobject.test/xml\">\n" +
"<Name>" + Name + "</Name>\n" +
"<City>" + City + "</City>\n" +
"<Designation>" + Designation + "</Designation>\n" +
"</Customer>\n");
try {
XmlObject object = XmlObject.Factory.parse(xmlString);
return object;
} catch (Exception e) {
e.printStackTrace();
return newObject;
}
}
}
Create Service Bus Application -> JavaMultiReturnAPP
Create Project --> JavaMultiReturnPRJ
Create below folder structure in the newly created project
Copy the newly created JAR file to the JAR folder
Create an XSD file based on the Java method, taking into consideration that the Java program has one input parameter and returns one output parameter. The XSD file should include input and output elements, and a WSDL file can be generated from the XSD file
For generation of XSD and WSDL file refer to this article Generate XSD and WSDL
Now lets go to the proxyServices folder and create Proxy Service by selecting the newly created WSDL.
Click OK and Finish to create the Proxy Services

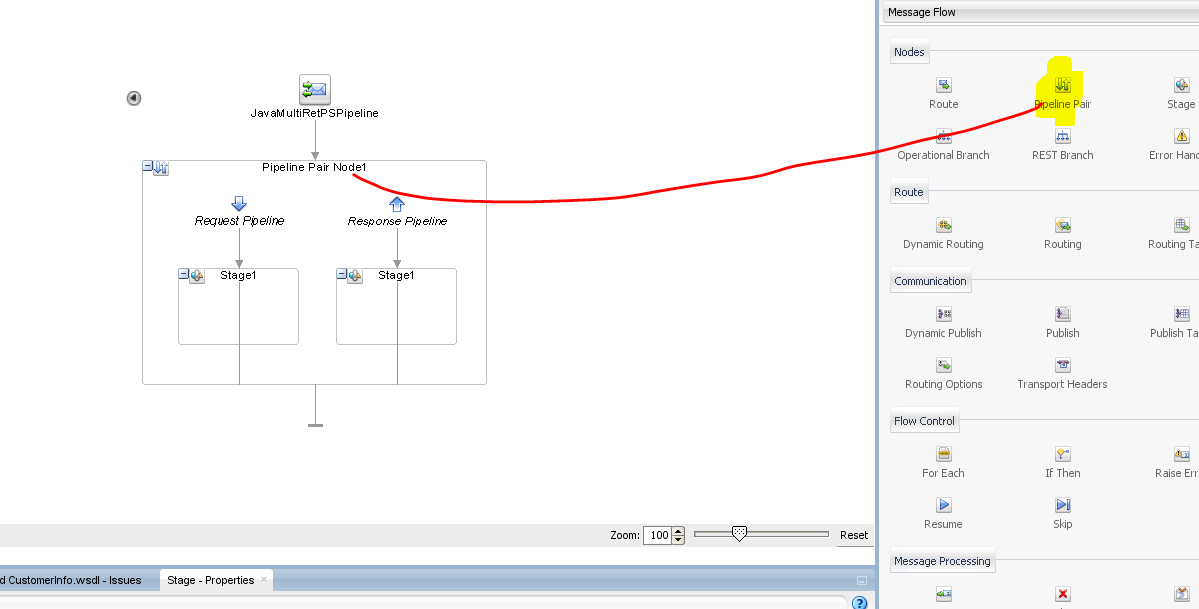

Click on Pipeline and drop pipeline pair node
Drop "Assign" Component onto the pipeline pair node to assign input value to variable.
Assign CustId as variable

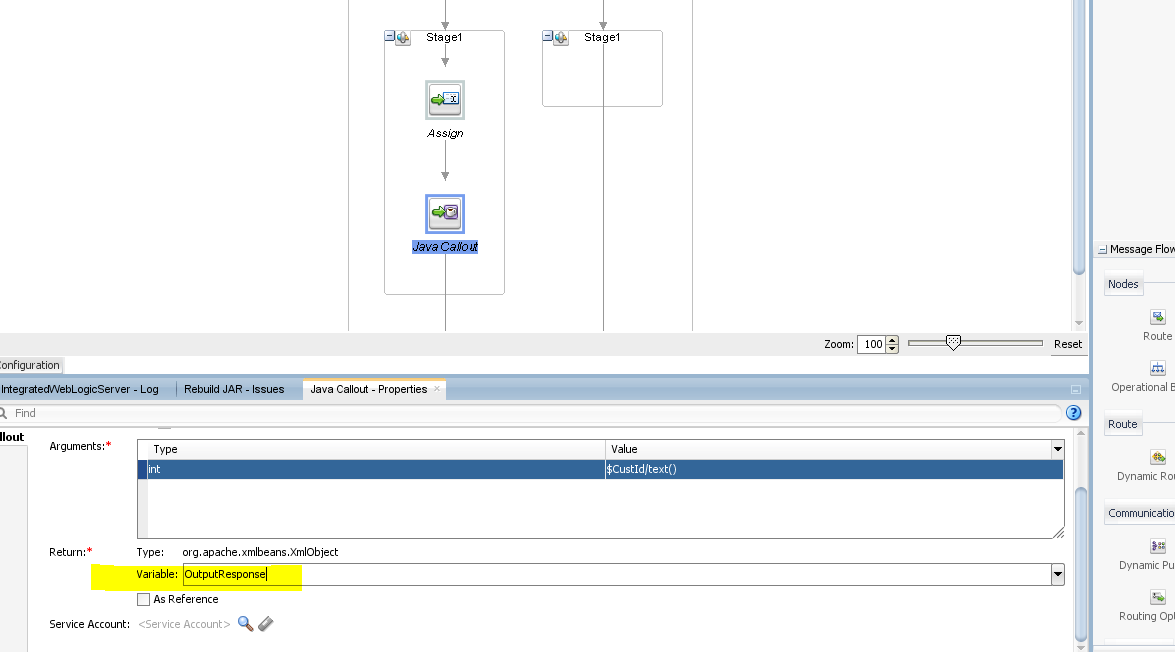

Now next step is to drop javacallout component onto request pipeline
select the JAR file and method name and assign input variable
Provide return variable as "OutputResponse"
Drop Replace component on the response pipeline and assign OutputResponse variable as shown in the figure
Now run the integration by passing cust id 1000 in the payload
