Calling REST API to Create CSV file at FTP server through Oracle Integration Cloud (service)

 In this tutorial, we will develop a REST API and upon the call of it, CSV File with data will be generated at FTP Server

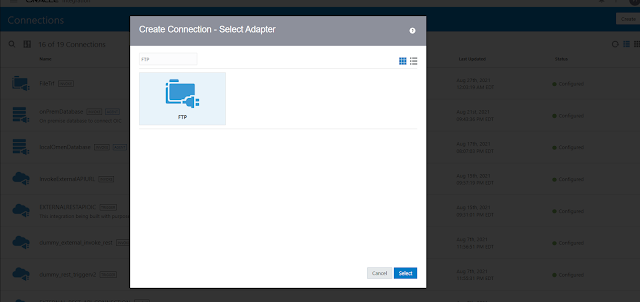

Create a connector for the FTP

Fill the the mandatory details as shown in the screenshot

Enter FTP Server details on which you want to copy files

Test the connection

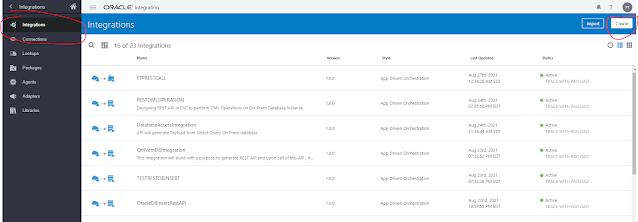

Now let's create the integration

Select App Driven Orchestration

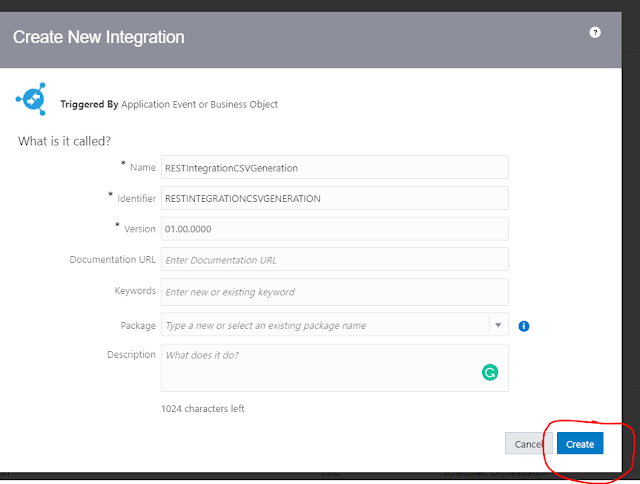

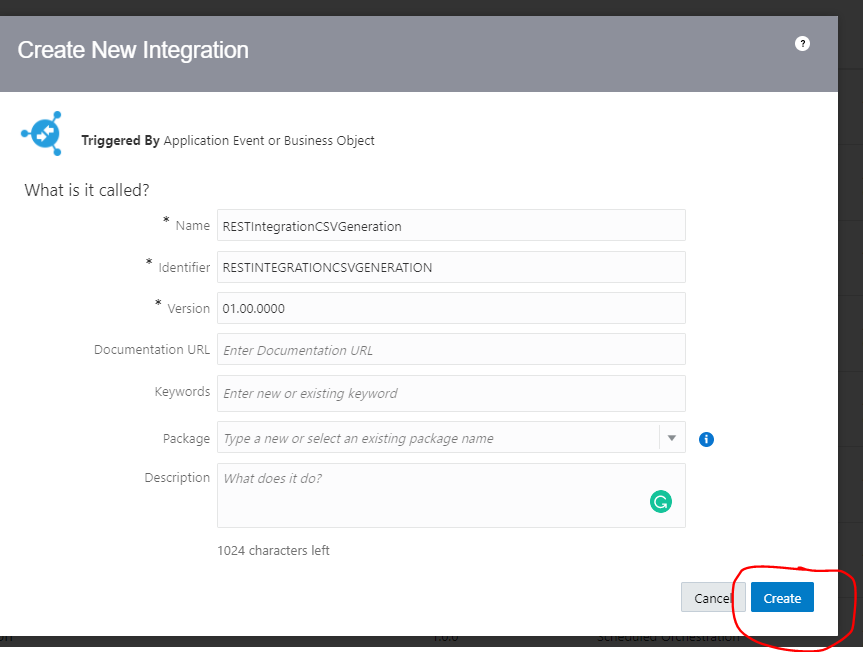

Fill the relevant details

Drop REST Connector on the pallette

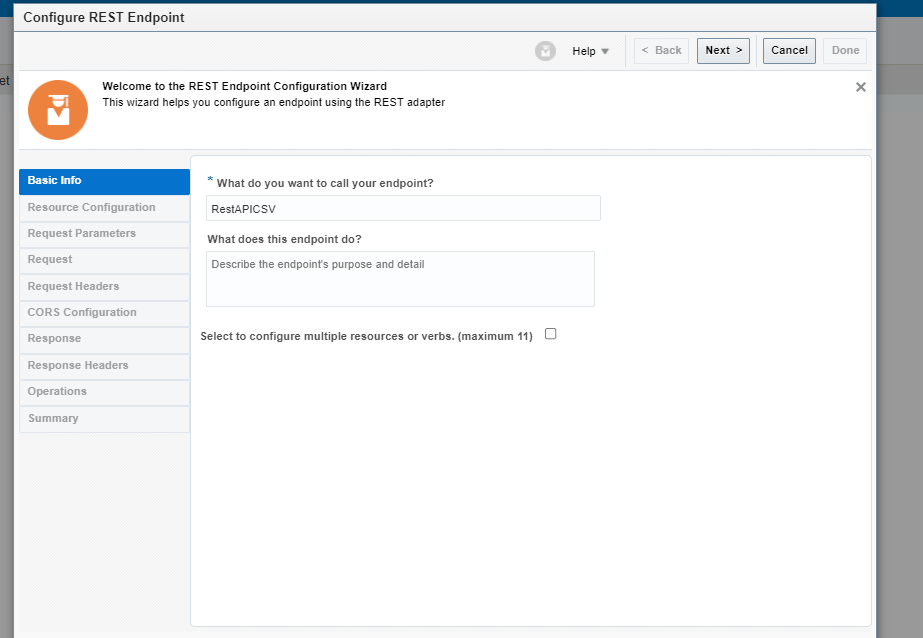

Fill the endpoint name which you want to call

Select the Operation Post and provide the desired URI name

Click on JSON Sample

 copy the below format

{

"UserData":[

        {

         "id":"",

         "firstname":"",

         "lastname":"",

 "email":"",

         "qualification":""

      },

      {

         "id":"",

         "firstname":"",

         "lastname":"",

 "email":"",

         "qualification":""

      }

  ]

}

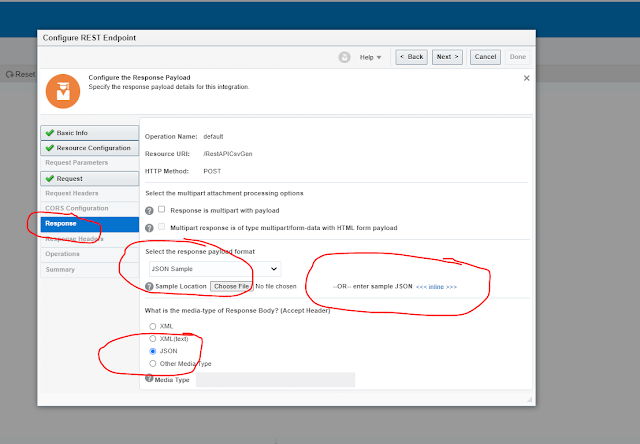

Provide Sample JSON for response as well

{

  "status" : ""

}

click on Done

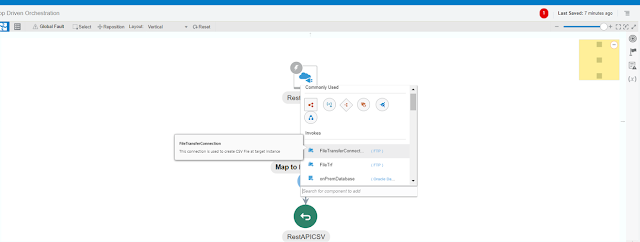

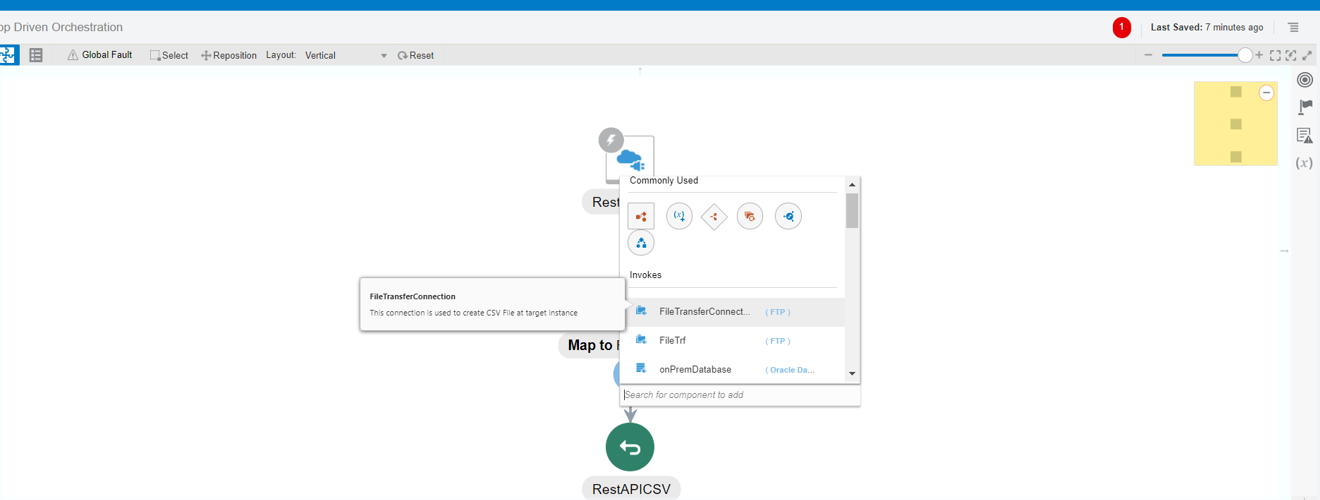

Now next step is to drop the FTP connector

fill the endpoint name

Select the operation and provide the output directory  and also provide the file pattern name

if you have a sample file just upload it

Click on Done

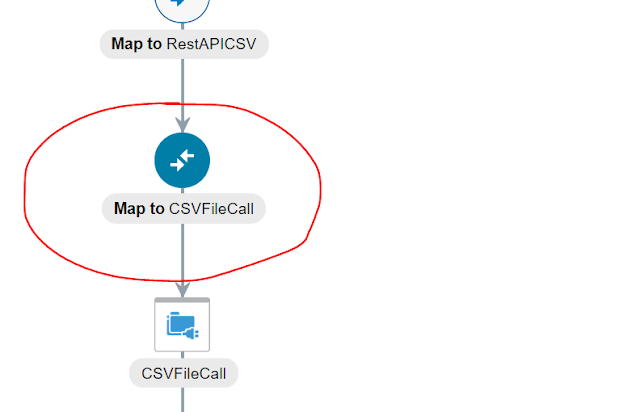

Now the next step is to create Mapping.

Map the Rest Request with CSV connector

Now next step is to create Response mapping

Click on Status and create a Target Node to edit message "Success"

Enable an identifier to track the integration

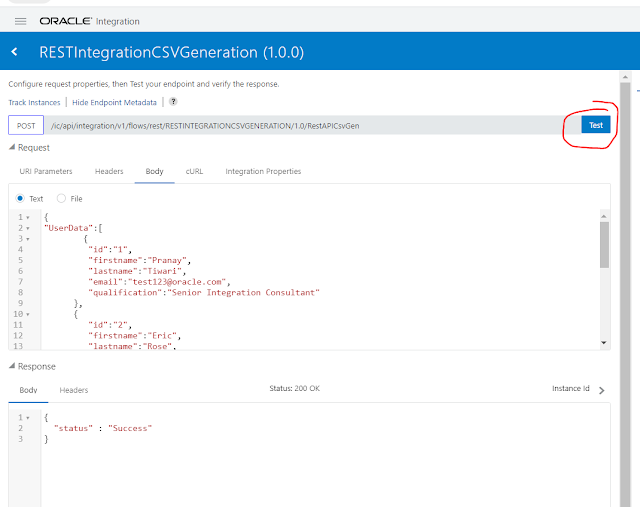

Run the integration by passing the payload in JSON format to create a csv file

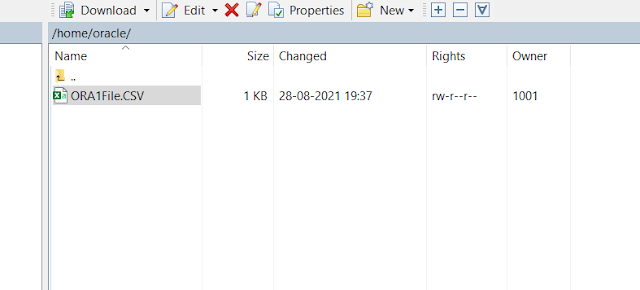

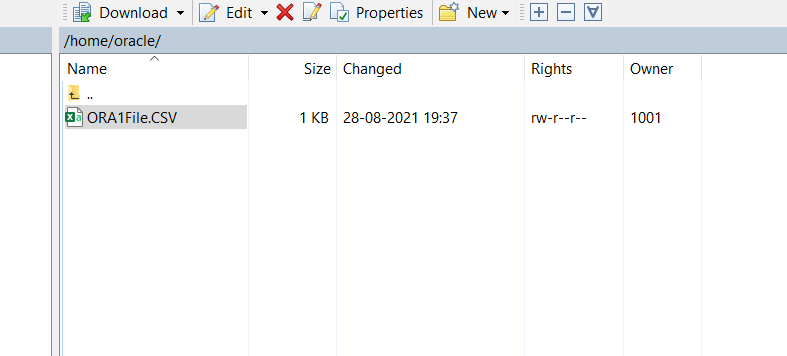

Here you go file is created based on payload submitted

Here is the data

Same thing you can do in Advance rest-client by copying the URL and calling it from the Advance rest client

In some cases you want to create column heading as well, in the current integration Column headings are not appearing to make sure column headings are available we need to rework on mapping

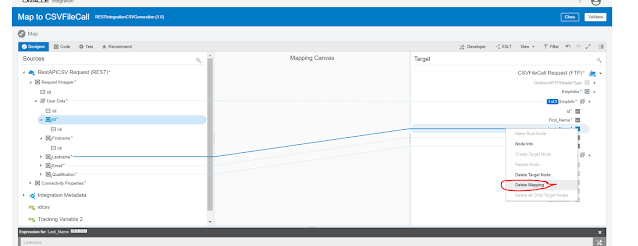

Delete the existing mapping

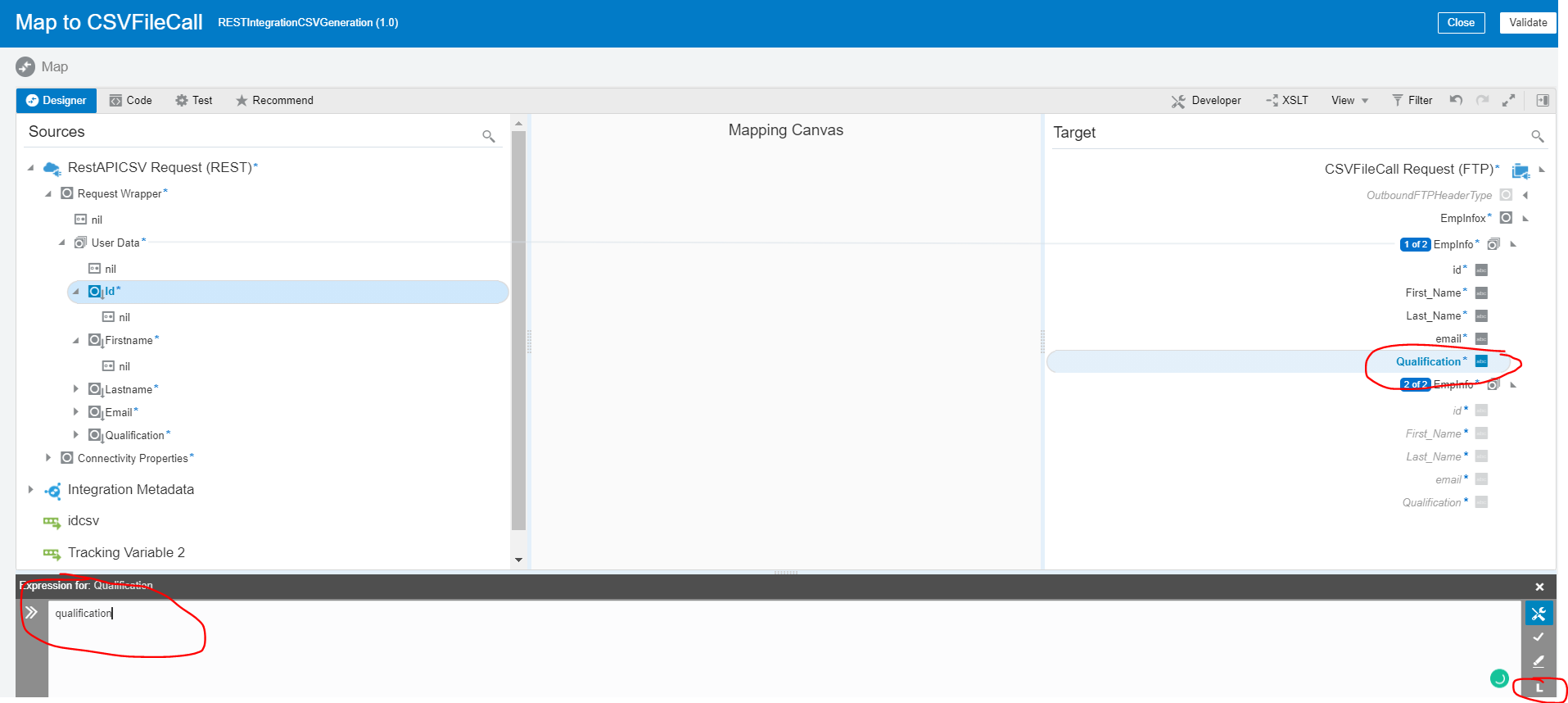

Create a new mapping with the label names , just shown in the screenshots

Map with request columns for the data

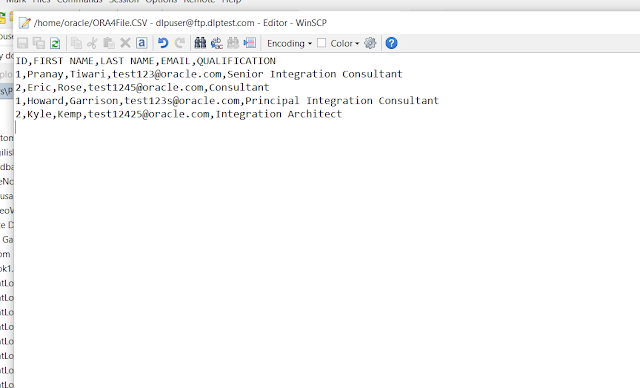

Here you go with the data along with column headings
