Create a REST API in OIC to access data from OnPrem Database

This integration focuses on building REST API to access the data from On-Premise Database. As shown in below schematic presentation, A REST connector used to publish API and agents leveraged to access on Premise database via OIC DB Adapter

Go to the Service Console

Click on Integrations and then click on Create

Click on App  Driven Orchestration

Fill the mandatory fields



 Drop newly created REST Trigger Connection on the Pallette

Fill the endpoint name which you want to call

Fill the URI name and also select the operation as "GET" since we are going to access data from On-Premise DB and publish it

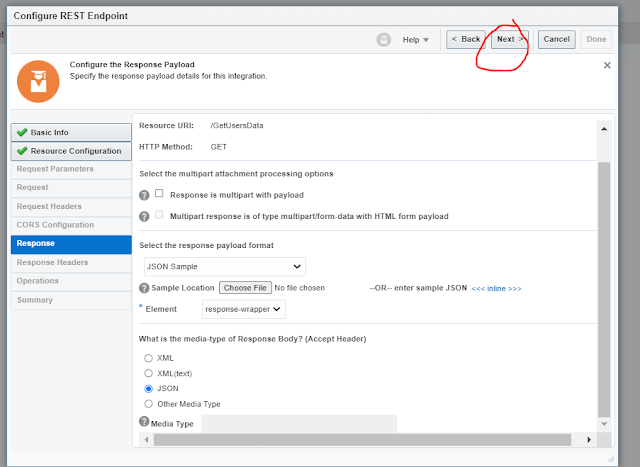

Upload JSON sample response

{

"UserData":[

        {

         "id":"id",

         "firstname":"firstname",

         "lastname":"lastname",

"email":"email@oracle.com",

         "qualification":"qualification"

      },

       {

         "id":"id",

         "firstname":"firstname",

         "lastname":"lastname",

"email":"email@oracle.com",

         "qualification":"qualification"

      }

  ]

}

Click on Ok

Click on Next

Click on Done

Next step is to drop On-Premise Database connector

Fill the details and select the operations "Run a SQL Statement"

write a query to access the table for which you want to publish the API

click on Done

Next step is to create mapping, Click on Map and drop it on pallete

Map the columns

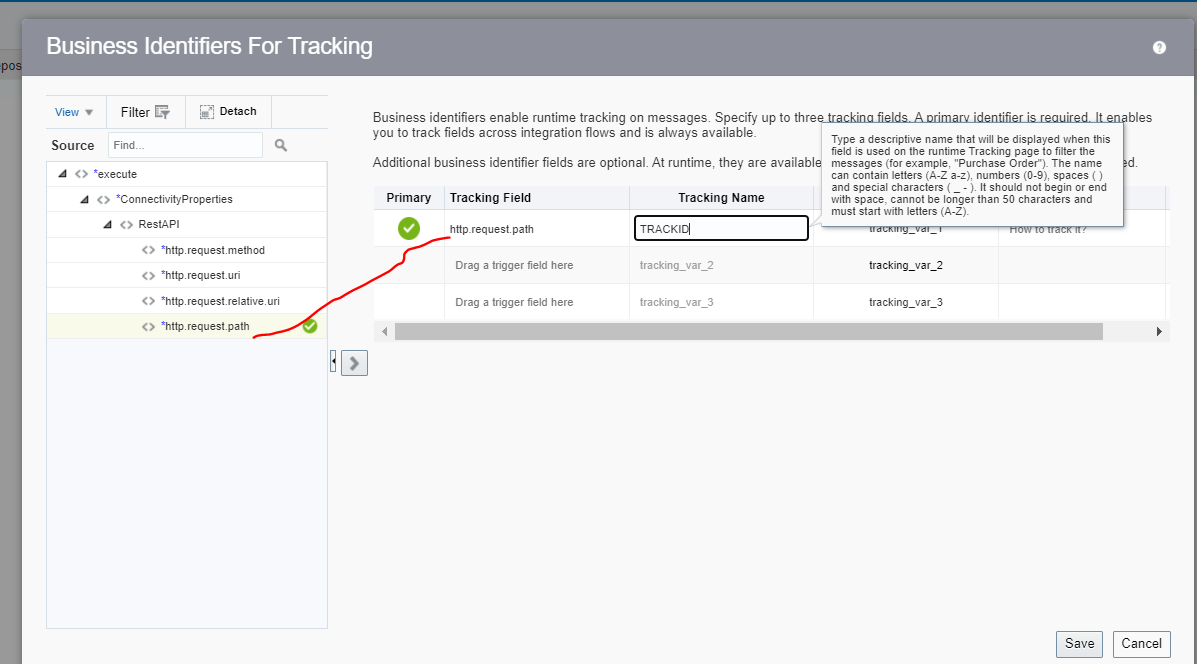

Enable the Tracking and fill the identifier

Activate the integrations

Click on Test

Click on the URL and enter the credentials

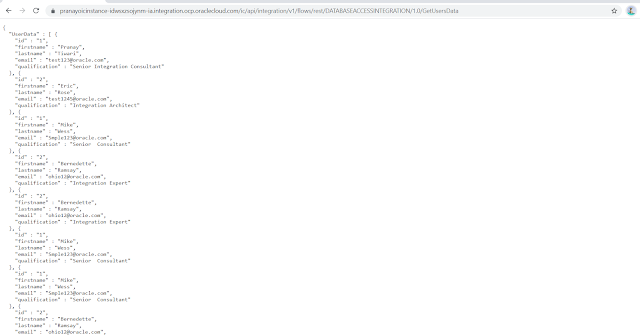

Here the data from On-Prem DB in JSON format
