Configuring On Premise Database in OIC Instance.

By -

Oracle Integration Cloud services provide different types of connectors to establish a connection with external applications, there will be certain scenarios where connectors or REST APIs are not available in OIC for a certain application, in that case, there will be the only option left is to connect DB of the particular application.


In this article, we will emphasize how we can configure an On-Premise database connection in OIC  and what are the perquisites  needed

To Configure the On-Premise Database connection, we must ensure connectivity agents have been installed in OIC or not.  Without a connectivity agent, connecting to an On-Premise database instance is not possible.

As shown in the below block diagram, On-Prem Database sending handshake signal to OIC services through Agents



Now lets gets started in configuring On-Premise Database Instance

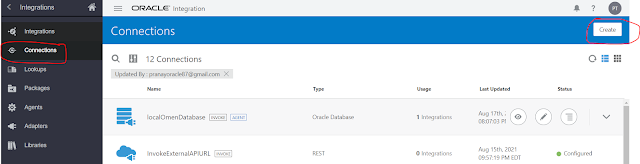

Go to the Integration Console and Click on Connections








Select Oracle Database

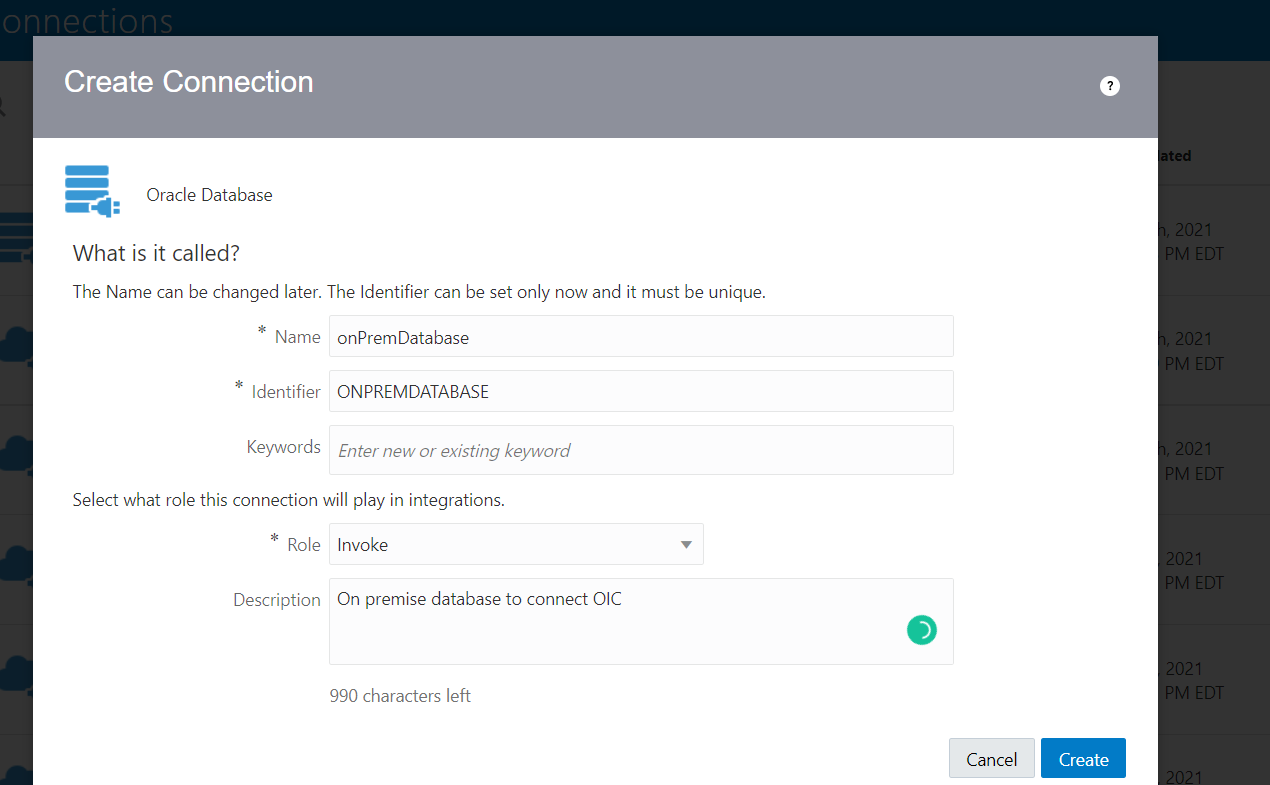

Fill the mandatory fields like Name , Identifier  and Role as Invoke















Click on Create and fill the connection properties  with Host Name , Port and SID











Provide Database User Name and Password as shown in the below screenshot  and click on Configure Agents





Select the already created Agent




Click on Test to Validate. it will the result as Success , in case of any failure do check whether Agents are up or down













Pranay is a versatile Oracle Technical consultant. Adept in Oracle ERP development, SDLC management, design, and architecture. He has 11 years of extensive experience in Oracle Apps implementation engaged in technical development areas of Oracle Applications 11i/R12 E-Business Suite. He possesses sound knowledge in technologies like OAF, ADF, J2EE, MSCA, Oracle PaaS Cloud, Java Cloud services, ADF & XML Publisher. Currently, he is working for BirlaSoft Inc. USA. Being a Consistent solution provider in Oracle Developer Community forums earned him the title of "Technology Master”, Currently he holds 3rd position globally for providing a solution in Oracle Developer Community for the OAF Workspace. He has also authored several articles on ADF Technology, Fusion Financials, OAF & PaaS Cloud. He successfully presented the case study in Oracle Collaborate event forum on "How optimizing the Oracle Mobile App Solution Helped in Boosting the Productivity of a Warehouse."
