Consuming External Rest API in Oracle Integration Cloud service

To all the learning enthusiasts, In this article, I will be sharing the steps required to consume external Rest API in the Oracle Integration Cloud Service Instance.

Before we hop into the steps, let's understand the use case of this particular integration.

Use Case: This sample integration will use External Rest API  https://reqres.in/api/users  as source URL with GET operations to access the data and generate REST URL in OIC instance.

Step 1: The first step would be to create a connection

Go to Integrations-->Connections--> Create

Select REST in the Create Connection wizard list.

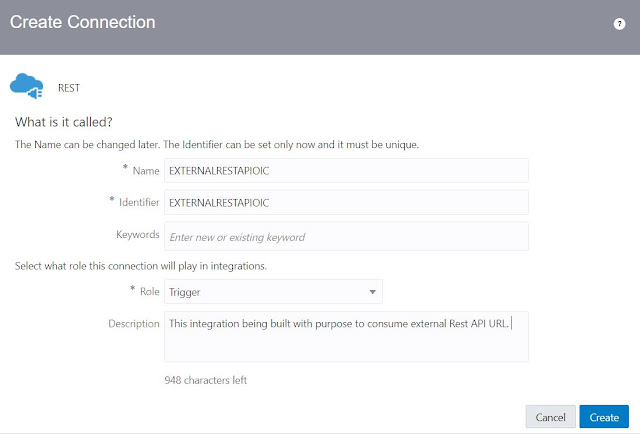

Select the Role as Trigger in the connection and click on Create Button

Select the security as "Basic Authentication"  and click on Test and then Save it

A trigger base connection has been created to trigger the REST URL. Now next step would be to create the INVOKE connection to invoke the external REST API URL

Provide information such  as

Connection Type: "Rest API Based URL"

Connection URL:  "https://reqres.in/api"

Security Policy:  "Basic Authentication"

Step 2: Once connections are created, the next step is to create integration

Select App Driven Orchestration as Integration Style

Fill out relevant required details

Select the Trigger connection as depicted in the below screenshot.

Provide the end point name which you want to call it as "GetEmpDetails" and click on Next

provide the resource URI as /myusers , This will be the endpoint URL

Click on Next  and Select response payload as JSON

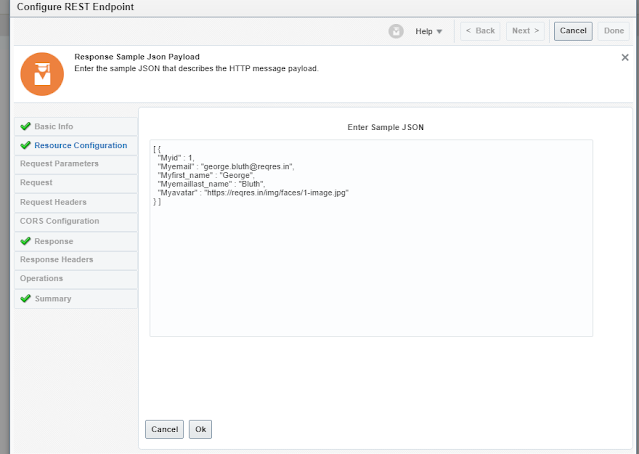

Copy the below payload in the Inline  and click on OK

[ {

  "Myid" : 1,

  "Myemail" : "george.bluth@reqres.in",

  "Myfirst_name" : "George",

  "Myemaillast_name" : "Bluth",

  "Myavatar" : "https://reqres.in/img/faces/1-image.jpg"

} ]

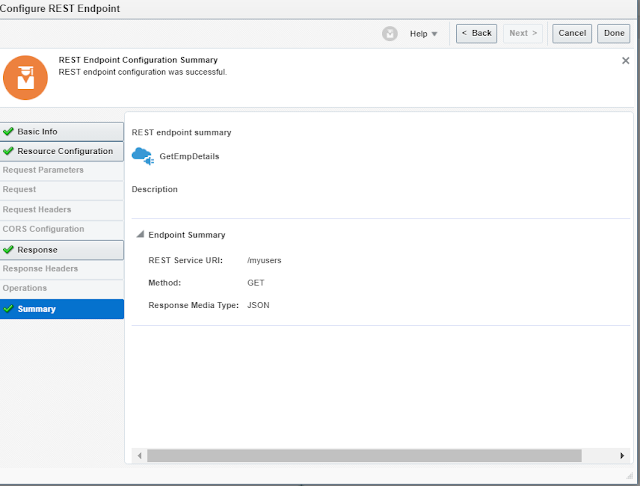

Click on Next to verify the configuration summary

Once trigger connection formed in the intergration , now the next step is to drop the Invoke connection

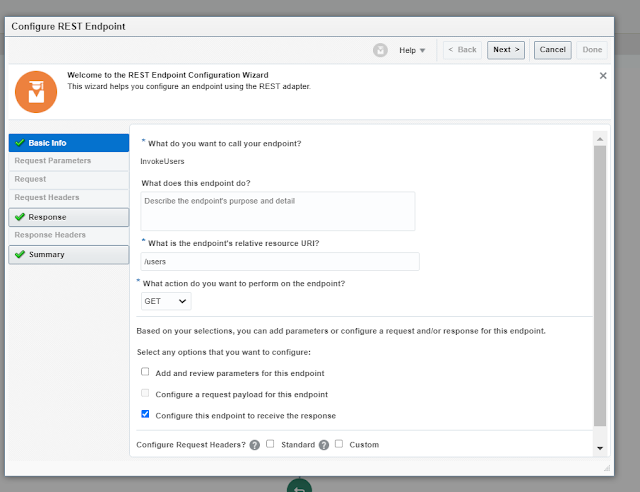

Provide the endpoint name as "InvokeUsers" and resource URL should be actuall URI of the External URI which we will be invoked in this integration.

External URL:   https://reqres.in/api/users

Resource uri would be : /users

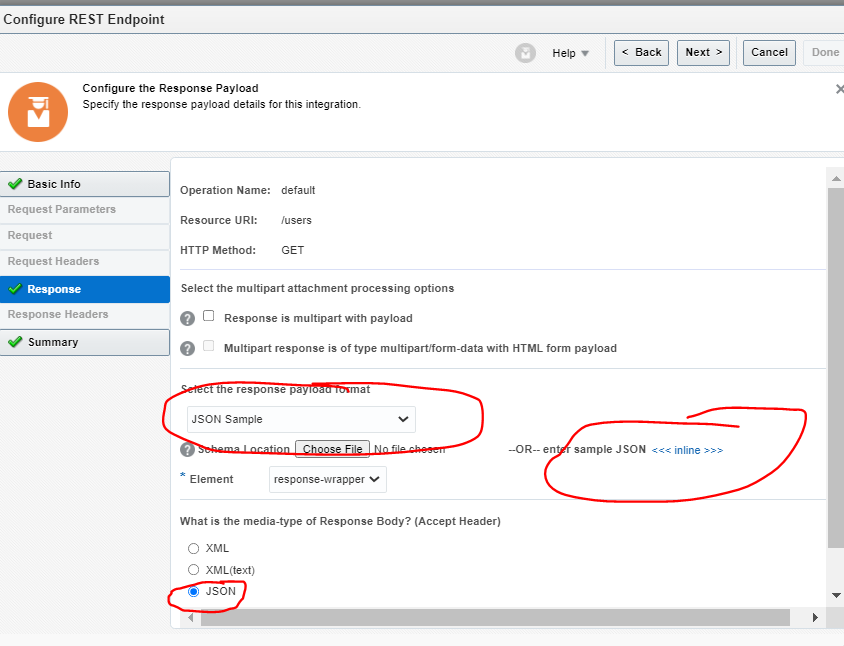

click on next and select response payload as JSON

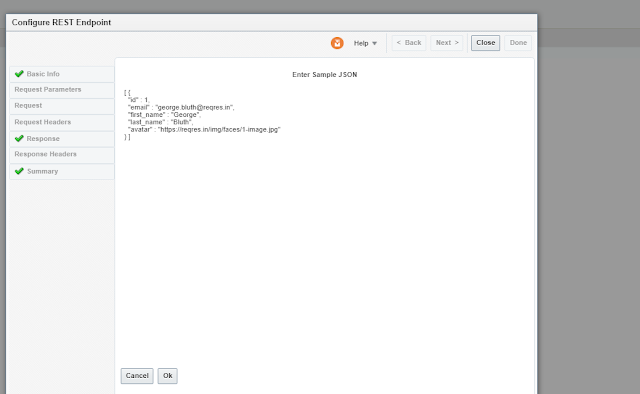

Sample Payload

[

{

  "id" : 1,

  "email" : "george.bluth@reqres.in",

  "first_name" : "George",

  "last_name" : "Bluth",

  "avatar" : "https://reqres.in/img/faces/1-image.jpg"

}

]

Click on Next and Done

Next step is to create a mapping by dropping Map component to the console as depicted in the screenshot.

Map the relevant relevant fields as shown in the screenshot.

click on the Tracking

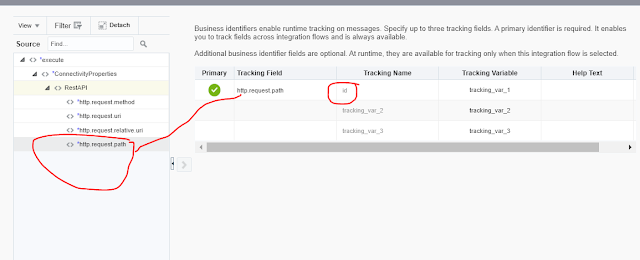

Drag the request path to the Tracking Field and give Tracking Name whatever relevant you feel , in my case i gave as id

Next step is to Activate the integration

Run the integration

Test the integration by clicking on the endpoint URL

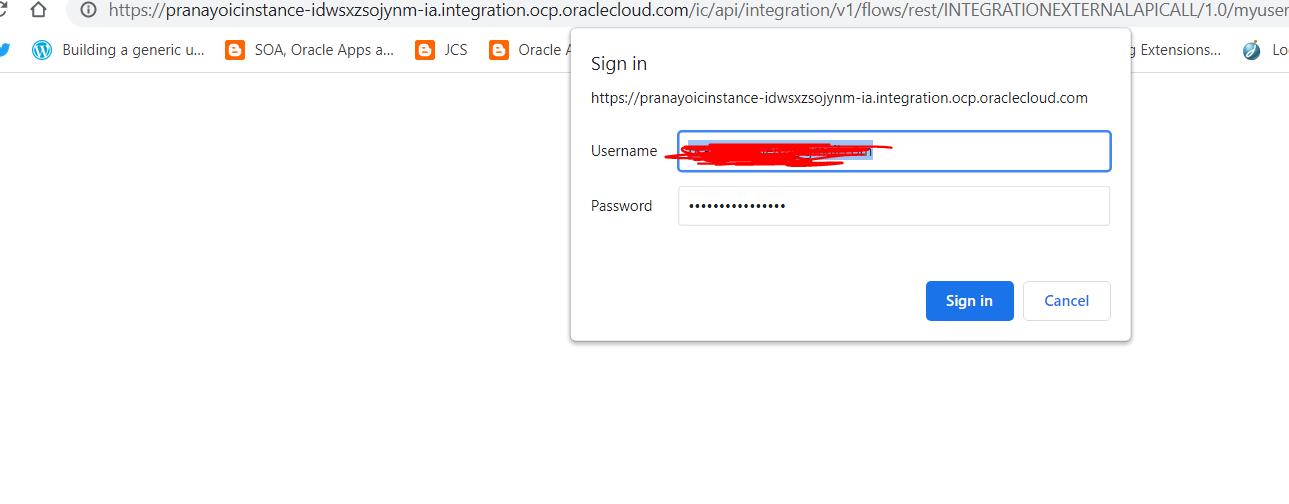

Upon click on the link , you will be asked to enter the credentials. Enter you OIC credentials

Here you go with external API Response. Congratualtions! for your First OIC integration.
